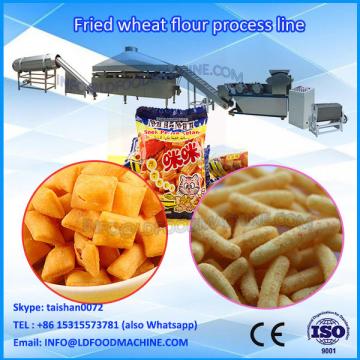

Fried wheat flour process line

Contact Now

Fried wheat flour process line Detail:

1. Power 178kw, electric heating tube 6000*25mm*9

2. Conveyor belt 600*2.2*7 grid *12MM center distance, the same upper and lower mesh belt

3. The entrance non-stick tape is 1.2 meters long, stainless steel is coated with fluorine, the plate thickness is 1.5mm, and the plate width is 25mm.

4. Frame bottom plate 6mm, side plate 4mm (304) surrounding plate 1.5mm

5. Insulation layer 40mm rock wool, left and right bottom insulation

6. Scraper board chain 5 points stainless steel, scraping board a total of 8 sets, speed 1:230

7. 2 exhaust fans, Ø250 exhaust pipe 20 meters, hood thickness 1.5mm

8. Electric control box PLC control, 3 sections temperature measurement display, mesh belt speed adjustable, automatic temperature control.

9. Production 600-1000kg per hour

10. One oil storage tank with a capacity of 2 tons

Fried wheat flour process line Features:

1. Made of stainless steel.

2. High degree of automation, continuous work, automatic temperature control,

3. Intelligent adjustment of frying speed and time.

4. The operation is safe and convenient, the performance is stable and reliable, and the equipment has a long service life.

5. The frying effect is good, the taste is pure and the taste is delicious.

6. Advanced mechanical configuration and control, can always maintain a good working condition, not only improve the output but also make the product quality stable, color, fragrance, taste

7. The automatic filtering of the machine can greatly extend the service life of the frying oil, without frequent oil change. The oil consumed in the product frying process is equivalent to the oil absorbed by the product, and the fuel saving efficiency is unquestionable.

8. Advanced and efficient heating system avoids energy waste and saves a lot of energy expenditure

9. The realization of the continuous work of the machine improves the unit work efficiency, effectively reduces the unit cost, and is also extremely helpful for labor expenditure and management expenditure.

Fried wheat flour process line Main part description

1. The fryer is divided into three layers of conveyor belts. The upper layer is a pressure-floating conveyor belt, the middle is a frying conveyor belt, and the lower layer is a scraping mesh belt. The top of the device is equipped with a fume hood.

2. Please confirm the power supply of 3-phase 4-core cable before use. The cable should be no less than 120 square meters and the total power is 245kw. There must be a reliable ground wire.

3. Thermocouple: The fryer thermocouple can automatically control the oil temperature. This equipment is equipped with 3 thermocouples inside the fuel tank to ensure the oil temperature is balanced. If the oil temperature is too high, the heating pipe will automatically stop working, lower than the specified temperature. The heating tube is automatically heated.

4. The circulating pump equipped with the fryer can be the temperature balance in the whole tank.

5. The amount of fuel added

6. After the equipment is shut down, wait until the oil temperature drops below 50 degrees to open the pipeline valve to open the oil pump until there is no oil remaining in the fuel tank. (Before opening the pipeline valve, close the oil return pipeline valve)

7. Oil storage tank: The stored oil can only be used by the fryer and cannot be connected to other equipment.

8. Liquid crystal display panel: The temperature and time required for the fried product can be designed. After the design is successful, the formula is called.

Fried wheat flour process line Start-up process:

Check if the valves of the fryer are closed → turn on the power (confirm that the hood mesh belt is lowered to the working state) → turn on the heating (the oil must be in the fuel tank) → turn on the fan → the oil temperature rises to the specified temperature → open the scraping slag → turn on the main net Belt → turn on circulating pump

Fried wheat flour process line shutdown process:

Turn off the heating → turn off the mesh belt → turn off the circulation pump → until the outlet does not discharge the slag → close the scraping slag → turn off the fan → until the display oil temperature shows below 50 degrees → close the oil return pipeline valve → open the oil pump pipeline valve to open the oil pump → until the fuel tank No oil residue can raise the hood, the pressure sling belt, the main net with the power supply to clean
