Puffed Snack Production Line Description

Product Description

extrusion snack process line extrusion snack machinerys

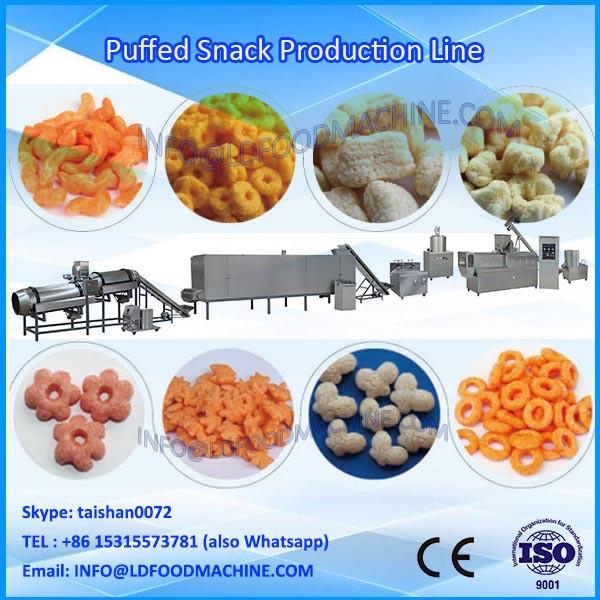

Corn puff machinery adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through frication of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

Flow chart:

grinding→mixing→extruding→drying→flavoring→cooling→packaging

Flow chart diagram:

Our engineer could desity the layout drawing according to your dimension of the factory for the snacks food machinery.

Raw material:

Corn, rice, millets, wheat, oat, barley etc as ingredients. Please note that all the materials should be in powder(flour) or grits form.

Final product:

Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.

Equipment list in the corn puff snacks food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil LDer→cooling

machinery→Pack machinery

Name Mixer
Usage To mix the raw materials evenly, fast speed, no leakage.
LLDe Vertical and horizontal LLDe
Motor 3kw, 4kw, 7.5kw etc.
Capacity 20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material stainless steel, carbon steel
Name Twin screw extruder
Usage To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Model DSE65, 70, 85
Motor 22kw, 37kw, 75kw
Capacity 100kg/h to 500kg/h
Material Screw materials 38CrMoAlstainless steel, carbon steel

Technical parameter for snacks food extruder:

Model Installed Power(kw) Power Consumption (kw) Capacity(kg/h) Dimension(m)
DSE65 74 52 100-150 17*1.2*2.2
DSE70 95 70 200-250 20*1.5*2.2
DSE85 139 104 300-500 28*3.5*4.3
Name Dryer (oven)
Usage the expanded food go through the “s” passage, to be dried to increase the self life.
LLDe electrical, steam, gas fired, diesel fired heating LLDe
Model KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity 100kg/h to 10 ton/h
Material stainless steel, carbon steel

Electrical heating dryer


Gas or Diesel fired heating dryer


Name Flavoring machinery
Usage To mix the oil and flavors on the surface of the snacks food
LLDe single and double flavoring drum
Motor 0.75kw
Capacity 100kg/h to 500 kg/h
Material stainless steel

Pack machinery:

Topackthe puffed snacks food into the plastic bags with required weight.

Pack & very

1. Inside package is plastic film, outside is wooden or plywood case, or fumigation package with

certificate, (based on the customers' need).

2. Ship, train, express or upon clients' demands.

Our Service

1)Free management of equipments' long distance shipping;
2)Provide factory layout according to your factory size in advance;
3)Provide the basic formula;
4)InLDect the machinery before leaving the factory;
5)Oversea installation and commissioning the equipment;
6)Technician will work with your workers together and teach your workers how to install machinerys,
how to operate machinerys, how to maintain machinerys during daily worLD;
7)Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide Technology support with you forever;
8)Provide English Version of Installation/Operation/Service/Maintenance Manual.

Our Company

Jinan Jinan Joysun Machinery Co., Ltd.. is a LD manufacturer of high quality twin screw extruder and single screw extruders for food industries. We have almost ten years’experience of worldwith our customers providing special desitys and practical solutions for a wide range of process needs. Free formula, local installation, workshop desity, machinery inLDection service are provided.

FAQ

1. Q: Are you a trading company or a manufacturer?
A: We are the manufacturer, which has almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can get a fLD to Jinan Airport. Our factories are just LDout 30 minutes drive away from Jinan Airport.We are so glad to arrange our car pick you up!
3. Q: How long is your guarantee?
A: One year(Caltulated from the equipment arrives at the customer's side.).
After this period we will definiy support you when needed.
You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, our engineer will go to your place to install the equipments, and for training.

Contact us

Amy

/ 15020006735
: 15020006735
: amy at LD.com

Web: en.cnLD.com
